Small Engines

Honda engines have long been recognized as the industry leader in providing reliability, easy starting, and fuel-efficient small Honda engines for sale. Built with high-quality components designed for optimum performance in the harshest environments. Honda engines are always on the cutting edge of engine performance technology to ensure you always get the best available. From the amazingly compact mini 4-stroke engines to the intelligent power of our GX series, Honda engines out-perform and out-last all other engines on the market.

From small Honda engines for sale for your residential lawn care equipment to heavy-duty construction equipment, Honda has the engines to get the job done. We regularly stock the majority of small Honda engines models for your convenience.

Makes & Models

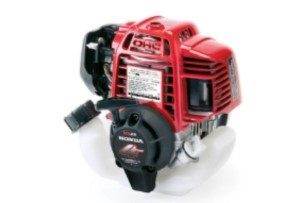

GX25 Honda Engine
GX25 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHC
  • Bore x Stroke - 35mm x 26mm
  • Displacement - 25 cm3
  • Net Power Output - 1.0 HP (.72 kW) @ 7,000 rpm
  • Net Torque - 0.74 lb-ft (1.0 Nm) @ 5,000 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 8.0:1
  • Carburetor - Diaphragm-type (overflow return)
  • Ignition System - Transistorized magneto
  • Starting System - Recoil
  • Lubrication System - Crankcase pressure-driven
  • Governor System - NA
  • Air cleaner - Semi-dry
  • Oil Capacity - 2.7US oz (80cc)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - .61 US qt (.58 liter)
  • Dry Weight 6.8 lb (2.7 kg)

GX25 Honda Engine Utah

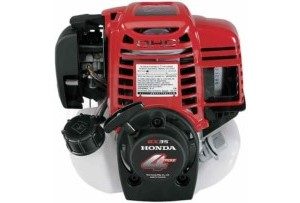

GX35 Honda Engine
GX35 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHC
  • Bore x Stroke - 39mm x 30mm
  • Displacement - 35.8 cm3
  • Net Power Output - 1.3 HP (1.0 kW) @ 7,000 rpm
  • Net Torque - 1.2 lb-ft (1.6 Nm) @ 5,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 8.0:1
  • Carburetor - Diaphragm-type (overflow return)
  • Ignition System - Transistorized magneto
  • Starting System - Recoil
  • Lubrication System - Crankcase pressure–driven
  • Governor System - NA
  • Air cleaner - Semi-dry
  • Oil Capacity - 3.4 US oz (100cc)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 0.67 U.S. qt (.63 liter)
  • Dry Weight - 7.6 lb (3.3 kg)

GX35 Honda Engine Utah

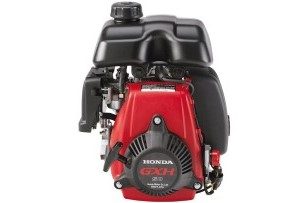

GXH50 Honda Engine
GXH50 4-stroke Horizontal
details



  • Engine Type - Air-cooled 4-stroke OHC
  • Bore x Stroke - 41.8 X 36 mm
  • Displacement - 49.4 cm3
  • Net Power Output - 2.1 HP (1.6 kW) @ 7,000 rpm
  • Net Torque - 2.0 lb-ft (2.7 Nm) @ 4,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 8.0:1
  • Carburetor - Float Type
  • Ignition System - Transistorized magneto
  • Starting System - Recoil
  • Lubrication System - Forced splash
  • Governor System - Centrifugal Mechanical
  • Air cleaner - Semi-dry
  • Oil Capacity - 0.26 US qt (0.25l)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - .81 U.S. qt (.77 liter)
  • Dry Weight - 12.1 lb (5.5 kg)

GXH50 Honda Engine

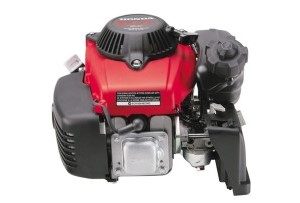

GXV50 Honda Engine
GXV50 4-Stroke Vertical
details



  • Engine Type - Air-cooled 4-stroke OHC
  • Bore x Stroke - 41.8 X 36 mm
  • Displacement - 49.4 cm3
  • Net Power Output - 2.1 HP (1.6 kW) @ 7,000 rpm
  • Net Torque - 2.0 lb-ft (2.7 Nm) @ 4,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 8.0:1
  • Carburetor - Float Type
  • Ignition System - Transistorized magneto
  • Starting System - Recoil
  • Lubrication System - Forced splash
  • Governor System - Centrifugal Mechanical
  • Air cleaner - Semi-dry
  • Oil Capacity - 0.26 US qt (0.25l)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - .29 U.S. qt (.27 liter)
  • Dry Weight - 11.5 lb (5.2 kg)

GXV50 Honda Engine

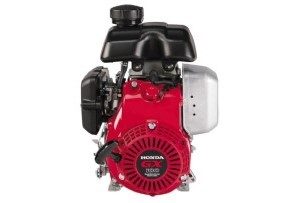

GX100 Honda Engine
GX100 4-stroke
details



  • Engine Type - Air-cooled 4-stroke OHC
  • Bore x Stroke - 56 X 40 mm
  • Displacement - 98 cm3
  • Net Power Output - 2.8 HP (2.1 kW) @ 3,600 rpm
  • Net Torque - 4.2 lb-ft (5.7 Nm) @ 3,600 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 8.5:1
  • Carburetor - Float Type
  • Ignition System - Transistorized magneto
  • Starting System - Recoil
  • Lubrication System - Splash
  • Governor System - Centrifugal Mechanical
  • Air cleaner - Dual element
  • Oil Capacity - 0.42 US qt (0.40l)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - .81 U.S. qt (.77 liter)
  • Dry Weight - 23.4 lb (10.6 kg)

Honda Engine GX100

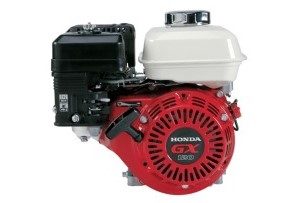

GX120 Honda Engine
GX120 4-stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 60 X 42 mm
  • Displacement - 118 cm3
  • Net Power Output - 3.5 HP (2.6 kW) @ 3,600 rpm
  • Net Torque - 5.4 lb-ft (7.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 8.5:1
  • Lamp/Charge coil options - 25W, 50W
  • Carburetor - Butterfly
  • Ignition System - Transistorized magneto
  • Starting System - Recoil
  • Lubrication System - Splash
  • Governor System - Mechanical
  • Air cleaner - Dual element
  • Oil Capacity - 0.59 US qt. (0.56 L)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 2.1 U.S. qts (2.0 liters)
  • Dry Weight - 29 lbs. (13.0 kg)

GX120 Honda Engine

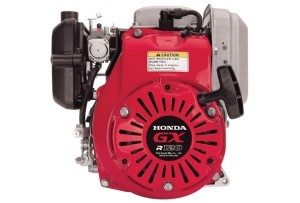

GXR120 Honda Engine
GXR120 4-stroke
details



  • Engine Type - Air-cooled 4-stroke OHC
  • Bore x Stroke - 60 X 43 mm
  • Displacement - 121 cm3
  • Net Power Output - 3.6 HP (2.7 kW) @ 3,600 rpm
  • Net Torque - 5.5 lb-ft (7.5 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 8.5:1
  • Lamp/Charge coil options - Oil alert (LED not included)
  • Carburetor - Multiple options available
  • Ignition System - Transistorized magneto
  • Starting System - Recoil
  • Lubrication System - Forced spray system
  • Governor System - Mechanical
  • Air cleaner - Multiple options available
  • Oil Capacity - 0.29 US qt. (.28 L)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - NA
  • Dry Weight - 22.9 lbs. (10.4 kg)

GXR120 Honda Engine

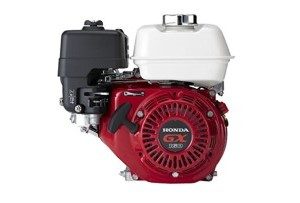

GX160 Honda Engine
GX160 4-stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 68 X 45 mm
  • Displacement - 163 cm3
  • Net Power Output - 4.8 HP (3.6 kW) @ 3,600 rpm
  • Net Torque - 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 9.0 : 1
  • Lamp/Charge coil options - 25W, 50W / 1A, 3A, 7A
  • Carburetor - Butterfly
  • Ignition System - Transistorized magneto
  • Starting System - Recoil Starter
  • Lubrication System - Splash
  • Governor System - Centrifugal Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 0.61 US qt. (0.58 L)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 3.3 U.S. qts (3.1 liters)
  • Dry Weight - 33 lbs. (15.1 kg)

GX160 Honda Engine in Utah

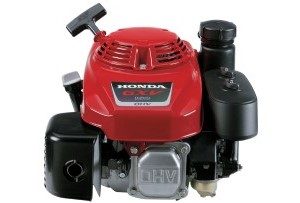

GXV160 Honda Engine
GXV160 4-stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 68 X 45 mm
  • Displacement - 163 cm3
  • Net Power Output - 4.3 HP (3.2 kW) @ 3,600 rpm
  • Net Torque - 7.1 lb-ft (9.6 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 8.0:1
  • Carburetor - Float Type
  • Ignition System - Transistorized magneto
  • Starting System - Recoil
  • Lubrication System - Splash
  • Governor System - Centrifugal Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 0.69 US qt (0.65l)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 1.5 U.S. qts (1.4 liters)
  • Dry Weight - 32 lb (14.5 kg)

GXV160 Honda Engine

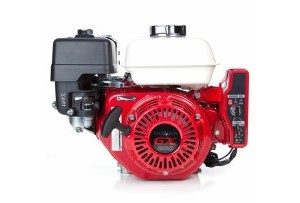

GX200 Honda Engine
GX200 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 68 X 45 mm
  • Displacement - 196 cm3
  • Net Power Output - 5.5 HP (4.1 kW) @ 3,600 rpm
  • Net Torque - 9.1 lb-ft (12.4 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio -8.5:1
  • Lamp/Charge coil options - 25W, 50W / 1A, 3A, 7A
  • Carburetor - Butterfly
  • Ignition System - Transistorized magneto
  • Starting System - Recoil Starter
  • Lubrication System - Splash
  • Governor System - Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 0.63 US qt (0.6l)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 3.3 U.S. qts (3.1 liters)
  • Dry Weight - 35 lbs. (16.1 kg)

GX200 Honda Engine

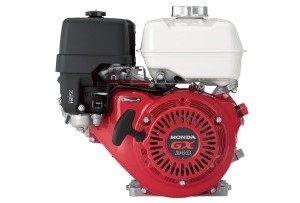

GX240 Honda Engine
GX240 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 73 X 58 mm
  • Displacement - 270 cm3
  • Net Power Output - 7.9 HP (5.9 kW) @ 3,600 rpm
  • Net Torque - 13.5 lb-ft (18.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio -8.5:1
  • Lamp/Charge coil options - 25W, 50W / 1A, 3A, 10A, 18A
  • Carburetor - Butterfly Float Type
  • Ignition System - Digital CDI with variable ignition timing
  • Starting System - Recoil/Electric
  • Lubrication System - Splash
  • Governor System - Centrifugal Mass Type
  • Air cleaner - Dual Element
  • Oil Capacity - 1.16 US qt (1.1 L)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 5.6 U.S. qts (5.3 liters)
  • Dry Weight - 55.1 to 66.1 lb (25 to 30 kg)

GX240 Honda Engine Utah

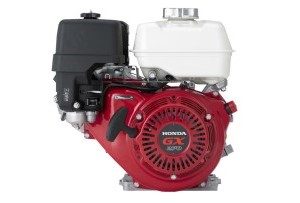

GX270 Honda Engine
GX270 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 77 X 58 mm
  • Displacement - 270 cm3
  • Net Power Output - 8.5 HP (6.3 kW) @ 3,600 rpm
  • Net Torque - 14.1 lb-ft (19.1 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio -8.5:1
  • Lamp/Charge coil options - 25W, 50W / 1A, 3A, 10A, 18A
  • Carburetor - Butterfly Float Type
  • Ignition System - Digital CDI with variable ignition timing
  • Starting System - Recoil/Electric
  • Lubrication System - Splash
  • Governor System - Centrifugal Mass Type
  • Air cleaner - Dual Element
  • Oil Capacity - 1.16 US qt (1.1 L)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 5.6 U.S. qts (5.3 liters)
  • Dry Weight - 55 lb (25 kg)

GX270 Honda Engine

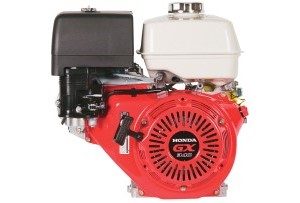

GX340 Honda Engine
GX340 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 88 X 64 mm
  • Displacement - 389 cm3
  • Net Power Output - 10.7 HP (8.0 kW) @ 3,600 rpm
  • Net Torque - 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio -8.2:1
  • Lamp/Charge coil options - 25W, 50W / 1A, 3A, 10A, 18A
  • Carburetor - Butterfly Float Type
  • Ignition System - Digital CDI with variable timing
  • Starting System - Recoil/Electric
  • Lubrication System - Splash
  • Governor System - Centrifugal Mass Type
  • Air cleaner - Dual Element
  • Oil Capacity - 1.16 US qt (1.1 L)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 6.4 U.S. qts (6.1 liters)
  • Dry Weight - 69 lb (31.5 kg)

GX340 Honda Engine

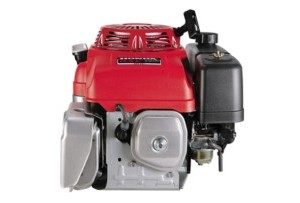

GXV340 Honda Engine
GXV340 4-Stroke Vertical
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 82 X 64 mm
  • Displacement - 337 cm3
  • Net Power Output - 8.9 HP (6.6 kW) @ 3,600 rpm
  • Net Torque - 15.9 lb-ft (21.6 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 7.7:1
  • Lamp/Charge coil options - 1A, 3A, 10A
  • Carburetor - Float Type
  • Ignition System - Transistorized magneto
  • Starting System - Recoil/Electric
  • Lubrication System - Pressure and splash
  • Governor System - Centrifugal Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 1.2 US qt (1.1l)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 2.2 US qts (2.1 liters)
  • Dry Weight - 71.2 lb (32.3 kg)

GXV240 Honda Engine Utah

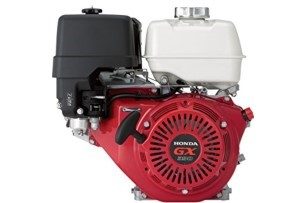

GX390 Honda Engine
GX390 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 88 X 64 mm
  • Displacement - 389 cm3
  • Net Power Output - 11.7 HP (8.7 kW) @ 3,600 rpm
  • Net Torque - 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 8.2:1
  • Lamp/Charge coil options - 25W, 50W / 1A, 3A, 10A, 18A
  • Carburetor - Butterfly Float Type
  • Ignition System - Digital CDI with variable timing
  • Starting System - Recoil/Electric
  • Lubrication System - Splash
  • Governor System - Centrifugal Mass Type
  • Air cleaner - Dual Element
  • Oil Capacity - 1.16 US qt (1.1 L)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 6.4 U.S. qts (6.1 liters)
  • Dry Weight - 69 lb (31.5 kg)

GX390 Honda Engine













GXV390 Honda Engine
GXV390 4-Stroke Vertical
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 88 X 64 mm
  • Displacement - 389 cm3
  • Net Power Output - 10.2 HP (7.6 kW) @ 3,600 rpm
  • Net Torque - 17.8 lb-ft (24.2 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 7.7:1
  • Lamp/Charge coil options - 3A / 1A, 3A, 10A
  • Carburetor - Float Type
  • Ignition System - Transistorized magneto
  • Starting System - Recoil/Electric
  • Lubrication System - Pressure and splash
  • Governor System - Centrifugal Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 1.2 US qt (1.1l)
  • Fuel - Unleaded 86 octane or higher
  • Fuel Tank Capacity - 2.2 US qts (2.1 liters)
  • Dry Weight - 76.3 lb (33.3 kg)

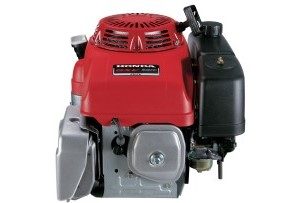

GXV390 Honda Engine













GX630 Honda Engine
GX630 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 78 X 72 mm
  • Displacement - 688 cm3
  • Net Power Output - 10.2 HP (7.6 kW) @ 3,600 rpm
  • Net Torque - 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 9.3:1
  • Lamp/Charge coil options - 2.7A, 17A, 26A
  • Carburetor - Horizontal type, two barrel butterfly valve, internal vent
  • Ignition System - Digital CDI with variable ignition timing
  • Starting System - Electric
  • Lubrication System - Forced lubrication
  • Governor System - Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 2.1 US qt (2.0l)
  • Fuel - Unleaded 86 octane or higher
  • Dry Weight - 96.8 lb (44 kg)

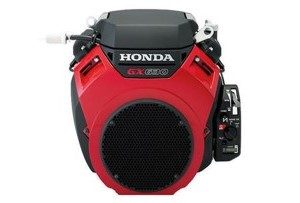

GX630 Honda Engine













GXV630 Honda Engine
GXV630 4-Stroke Vertical
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 78 X 72 mm
  • Displacement - 688 cm3
  • Net Power Output - 20.8 hp (15.5 kW) @ 3,600 rpm
  • Net Torque - 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 9.3:1
  • Lamp/Charge coil options - 2.7A, 17A, 26A
  • Carburetor - Horizontal type, two barrel butterfly valve, internal vent
  • Ignition System - Digital CDI with variable ignition timing
  • Starting System - Electric
  • Lubrication System - Forced lubrication
  • Governor System - Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 2.3 US qt (2.2l)
  • Fuel - Unleaded 86 octane or higher
  • Dry Weight - 98.3 lb (44.7 kg)

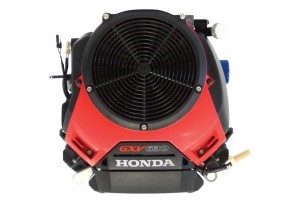

GXV630 Honda Engine















GX660 Honda Engine
GX660 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 78 X 72 mm
  • Displacement - 688 cm3
  • Net Power Output - 21.5 hp (16.0 kW) @ 3,600 rpm
  • Net Torque - 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 9.3:1
  • Lamp/Charge coil options - 2.7A, 17A, 26A
  • Carburetor - Horizontal type, two barrel butterfly valve, internal vent
  • Ignition System - Digital CDI with variable ignition timing
  • Starting System - Electric
  • Lubrication System - Forced lubrication
  • Governor System - Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 2.0 US qt (1.9l)
  • Fuel - Unleaded 86 octane or higher
  • Dry Weight - 96.8 lb (44 kg)

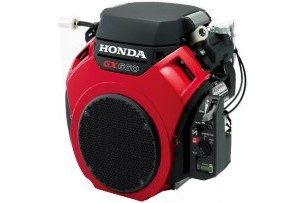

GX660 Honda Engine

















GXV660 Honda Engine
GXV660 4-Stroke Vertical
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 78 X 72 mm
  • Displacement - 688 cm3
  • Net Power Output - 21.5 hp (16.0 kW) @ 3,600 rpm
  • Net Torque - 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 9.3:1
  • Lamp/Charge coil options - 2.7A, 17A, 26A
  • Carburetor - Horizontal type, two barrel butterfly valve, internal vent
  • Ignition System - Digital CDI with variable ignition timing
  • Starting System - Electric
  • Lubrication System - Forced lubrication
  • Governor System - Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 2.3 US qt (2.2l)
  • Fuel - Unleaded 86 octane or higher
  • Dry Weight - 98.3 lb (44.7 kg)

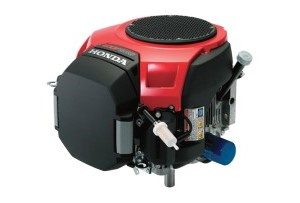

GXV660 Honda Engine















GX690 Honda Engine
GX690 4-Stroke
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 78 X 72 mm
  • Displacement - 688 cm3
  • Net Power Output - 22.1 hp (16.5 kW) @ 3,600 rpm
  • Net Torque - 35.6 lb-ft (48.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 9.3:1
  • Lamp/Charge coil options - 2.7A, 17A, 26A
  • Carburetor - Horizontal type, two barrel butterfly valve, internal vent
  • Ignition System - Digital CDI with variable ignition timing
  • Starting System - Electric
  • Lubrication System - Forced lubrication
  • Governor System - Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 2.1 US qt (2.0l)
  • Fuel - Unleaded 86 octane or higher
  • Dry Weight - 96.8 lb (44 kg)

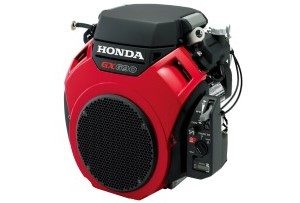

GX690 Honda Engine Utah

















GXV690 Honda Engine
GXV690 4-Stroke Vertical
details



  • Engine Type - Air-cooled 4-stroke OHV
  • Bore x Stroke - 78 X 72 mm
  • Displacement - 688 cm3
  • Net Power Output - 22.1 hp (16.5 kW) @ 3,600 rpm
  • Net Torque - 35.6 lb-ft (48.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
  • Compression Ratio - 9.3:1
  • Lamp/Charge coil options - 2.7A, 17A, 26A
  • Carburetor - Horizontal type, two barrel butterfly valve, internal vent
  • Ignition System - Digital CDI with variable ignition timing
  • Starting System - Electric
  • Lubrication System - Forced lubrication
  • Governor System - Mechanical
  • Air cleaner - Dual Element
  • Oil Capacity - 2.3 US qt (2.2l)
  • Fuel - Unleaded 86 octane or higher
  • Dry Weight - 98.3 lb (44.7 kg)

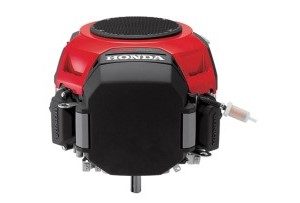

GXV690 Honda Engine

















Contact a Representative

* Required
