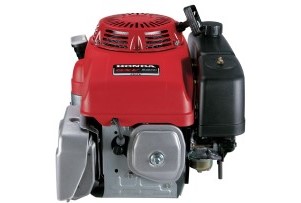

GXV390 Honda Engine

GXV390 Honda Engine

SKU: GXV390 4-Stroke Vertical



  • Engine Type – Air-cooled 4-stroke OHV
  • Bore x Stroke – 88 X 64 mm
  • Displacement – 389 cm3

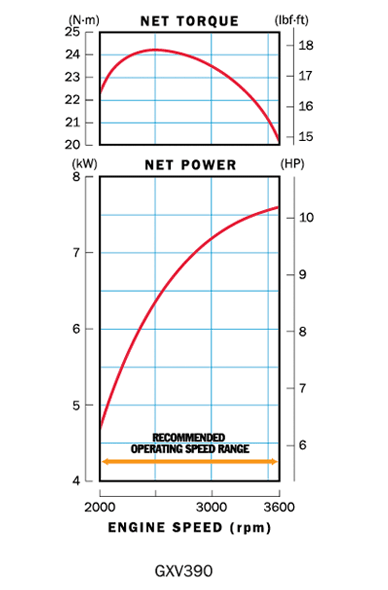

  • Net Power Output – 10.2 HP (7.6 kW) @ 3,600 rpm
  • Net Torque – 17.8 lb-ft (24.2 Nm) @ 2,500 rpm
  • PTO Shaft Rotation – Counterclockwise (from PTO shaft side)
  • Compression Ratio – 7.7:1
  • Lamp/Charge coil options – 3A / 1A, 3A, 10A
  • Carburetor – Float Type
  • Ignition System – Transistorized magneto
  • Starting System – Recoil/Electric
  • Lubrication System – Pressure and splash
  • Governor System – Centrifugal Mechanical
  • Air cleaner – Dual Element
  • Oil Capacity – 1.2 US qt (1.1l)
  • Fuel – Unleaded 86 octane or higher
  • Fuel Tank Capacity – 2.2 US qts (2.1 liters)
  • Dry Weight – 76.3 lb (33.3 kg)

GXV390 Honda Engine
