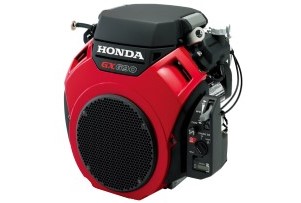

GX690 Honda Engine

GX690 Honda Engine

SKU: GX690 4-Stroke



  • Engine Type – Air-cooled 4-stroke OHV
  • Bore x Stroke – 78 X 72 mm
  • Displacement – 688 cm3

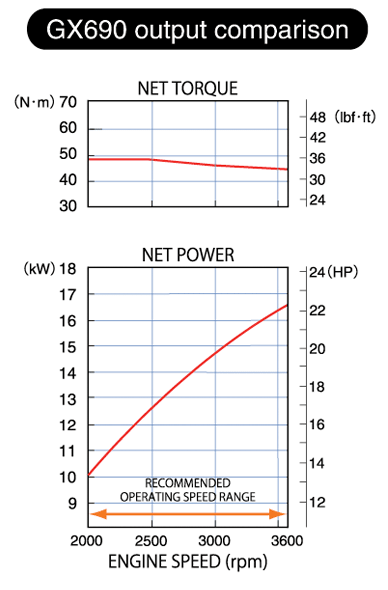

  • Net Power Output – 22.1 hp (16.5 kW) @ 3,600 rpm
  • Net Torque – 35.6 lb-ft (48.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation – Counterclockwise (from PTO shaft side)
  • Compression Ratio – 9.3:1
  • Lamp/Charge coil options – 2.7A, 17A, 26A
  • Carburetor – Horizontal type, two barrel butterfly valve, internal vent
  • Ignition System – Digital CDI with variable ignition timing
  • Starting System – Electric
  • Lubrication System – Forced lubrication
  • Governor System – Mechanical
  • Air cleaner – Dual Element
  • Oil Capacity – 2.1 US qt (2.0l)
  • Fuel – Unleaded 86 octane or higher
  • Dry Weight – 96.8 lb (44 kg)

GX690 Honda Engine Utah

















Call For Pricing
