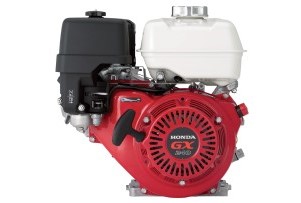

GX240 Honda Engine

GX240 Honda Engine

SKU: GX240 4-Stroke



  • Engine Type – Air-cooled 4-stroke OHV
  • Bore x Stroke – 73 X 58 mm
  • Displacement – 270 cm3

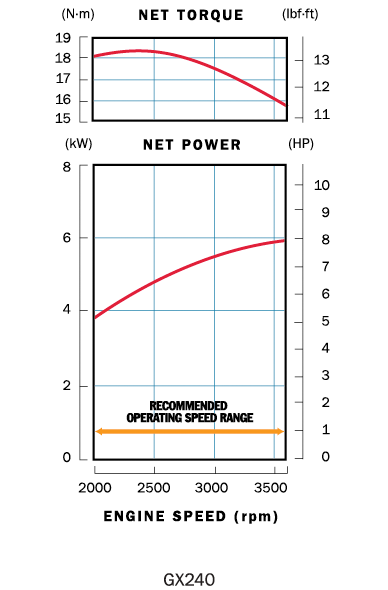

  • Net Power Output – 7.9 HP (5.9 kW) @ 3,600 rpm
  • Net Torque – 13.5 lb-ft (18.3 Nm) @ 2,500 rpm
  • PTO Shaft Rotation – Counterclockwise (from PTO shaft side)
  • Compression Ratio -8.5:1
  • Lamp/Charge coil options – 25W, 50W / 1A, 3A, 10A, 18A
  • Carburetor – Butterfly Float Type
  • Ignition System – Digital CDI with variable ignition timing
  • Starting System – Recoil/Electric
  • Lubrication System – Splash
  • Governor System – Centrifugal Mass Type
  • Air cleaner – Dual Element
  • Oil Capacity – 1.16 US qt (1.1 L)
  • Fuel – Unleaded 86 octane or higher
  • Fuel Tank Capacity – 5.6 U.S. qts (5.3 liters)
  • Dry Weight – 55.1 to 66.1 lb (25 to 30 kg)

GX240 Honda Engine Utah







Call For Pricing
