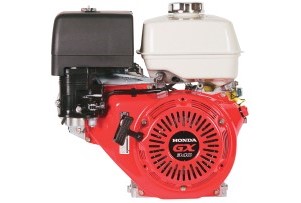

GX340 Honda Engine

GX340 Honda Engine

SKU: GX340 4-Stroke



  • Engine Type – Air-cooled 4-stroke OHV
  • Bore x Stroke – 88 X 64 mm
  • Displacement – 389 cm3

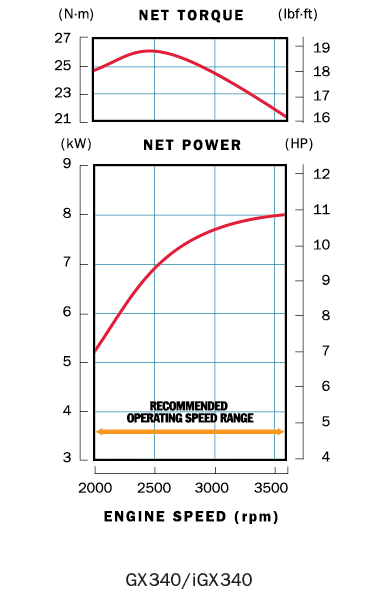

  • Net Power Output – 10.7 HP (8.0 kW) @ 3,600 rpm
  • Net Torque – 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
  • PTO Shaft Rotation – Counterclockwise (from PTO shaft side)
  • Compression Ratio -8.2:1
  • Lamp/Charge coil options – 25W, 50W / 1A, 3A, 10A, 18A
  • Carburetor – Butterfly Float Type
  • Ignition System – Digital CDI with variable timing
  • Starting System – Recoil/Electric
  • Lubrication System – Splash
  • Governor System – Centrifugal Mass Type
  • Air cleaner – Dual Element
  • Oil Capacity – 1.16 US qt (1.1 L)
  • Fuel – Unleaded 86 octane or higher
  • Fuel Tank Capacity – 6.4 U.S. qts (6.1 liters)
  • Dry Weight – 69 lb (31.5 kg)
